65 mm Sliding Partition Walls Panel Installation System Size For Learning Center
Partition thickness is 65mm
225kg per meter rail load
The height of the partition is suitable for 3500mm or less
Using 24kg/m2, 25mm thickness PAR sound absorbing glass fiber, sound insulation range 32db-36db
Using 9mm thick panel
The profile uses 6063-T6 high hardness alumina
Sealed with durable NBR modified nitrile rubber
Widely used in hotels, restaurants, training rooms, teaching rooms, conference rooms, office buildings, etc.
| Series | BG 65 | BG 85 | BG100 |
| Panel supension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 4000 mm | 6000 mm | 8000 mm |
| Panel width | 600-1230 mm | 600-1230 mm | 600-1230 mm |
| Face material | 9 mm | 9 mm | 9 mm |
| Pass doors | Single Door or Double Door |
| Sound insulation | 20 – 32 db | 28 – 36 db | 32 – 50 db |
| Finish Material | Plywood / MDF /Laminate / Melamine / Gypsum |
| Board / Fabric / Insulation / Fireproof /Wall Paper /Vinyl /Painting /etc,(Customized) |

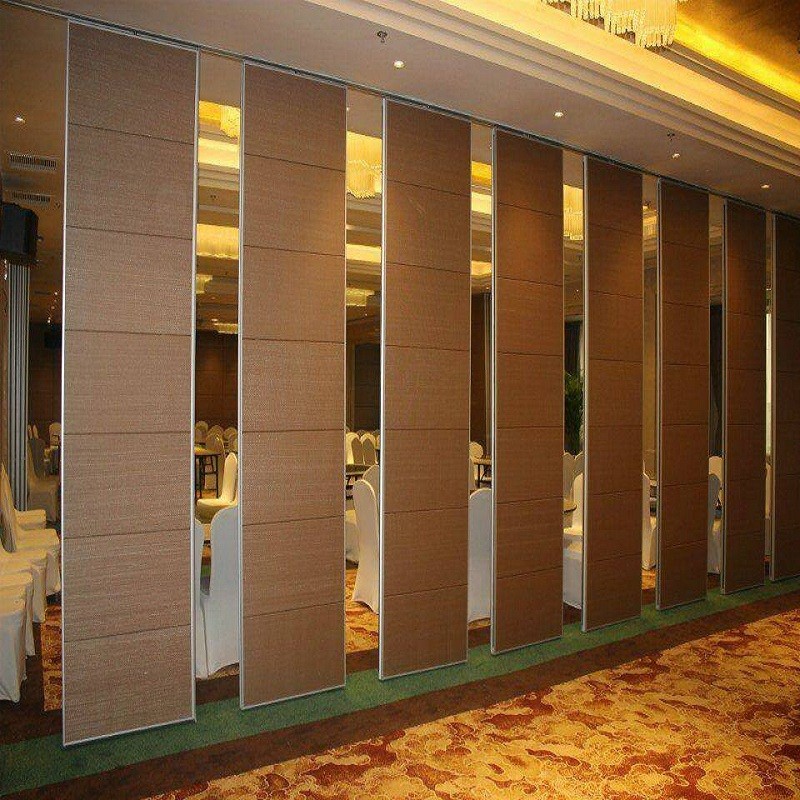

The hotel's screen partitions, color and surface decoration, etc., keep the hotel simple and refined after the partition, sturdy and durable, flexible use of diverse spaces and very stylish interior style after the hotel is cut off. Let you use the space in a limited space.
Screen partitions: large-scale convention and exhibition centers, hotels, business meetings, cafes, shopping malls, hospitals, churches, international schools and government agencies and other types of indoor venues.
Significant features: Separate and sort out different types of only active space in the most economical, fast and reasonable way; provide independent and undisturbed space; no need for ground track to ensure the integrity of the ground decorative surface.
About us-Best way to build a soundproof partition wall
Guangdong Bunge Building Material Industrial Co.,Ltd is a professional company in manufacturing Movable Partition Walls System. We are the real manufacturer, we have our own factory and showroom in Guangzhou, China, which covers an area over 3000 m2. And we have around 10 years experience in it. There is a ultra-high system sample in our factory, over 8 meters. Every client who came to our factory was amazing in it. BUNGE Factory is always providing the clients with nice quality and competitive price movable wall system , and we are so strict to inspect the quality before delivering. So far, we have exported to USA, Australia Uganda, Lebanon, Sri-Lanka, Saudi Arabia, Philippines and many other countries.
As a professional manufacturer, we not only produce, we also design, deliver and have the after-sales service for clients. If the client need installation service, we also can send our technicians to supervise the installation. In addition, we also can supply Free design to every client and we will reply in 12 hours if the clients have any questions.Welcome partition wall contractor discuss together.
