Office Perforated Wood Acoustic Panels Fireproof Sound Absorption

Name: Office Perforated Wood Acoustic Panels Fireproof Sound Absorption
Brand: BUNGE
Price: 9 USD

Buy cheap Office Perforated Wood Acoustic Panels Fireproof Sound Absorption product

Brand Name : BUNGE

Model Number : Perforated Acoustic Panels

Certification : ISO9001

Place of Origin : Guangzhou,China

MOQ : 100 Square meters

Price : 9 / 35 dollar per square meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000 square meters per month

Delivery Time : 7-15 days

Packaging Details : Cartons or according to customer's request.

Product name : Perforated acoustic panel

Finish : Melamine, Natural Wood Veneer

Size : 600*600, 1200*600,2400*1200 mm

Patter : 8-8-1, 16-16-3, 16-16-6

Application : Music room,studio room

Installation : Aluminum keel, wood frame

Material : MDF,solid wood

Thickness : 12 / 15 / 18 mm

Contact Now

Sound Absorption Perforated Acoustic Panle

Specification:

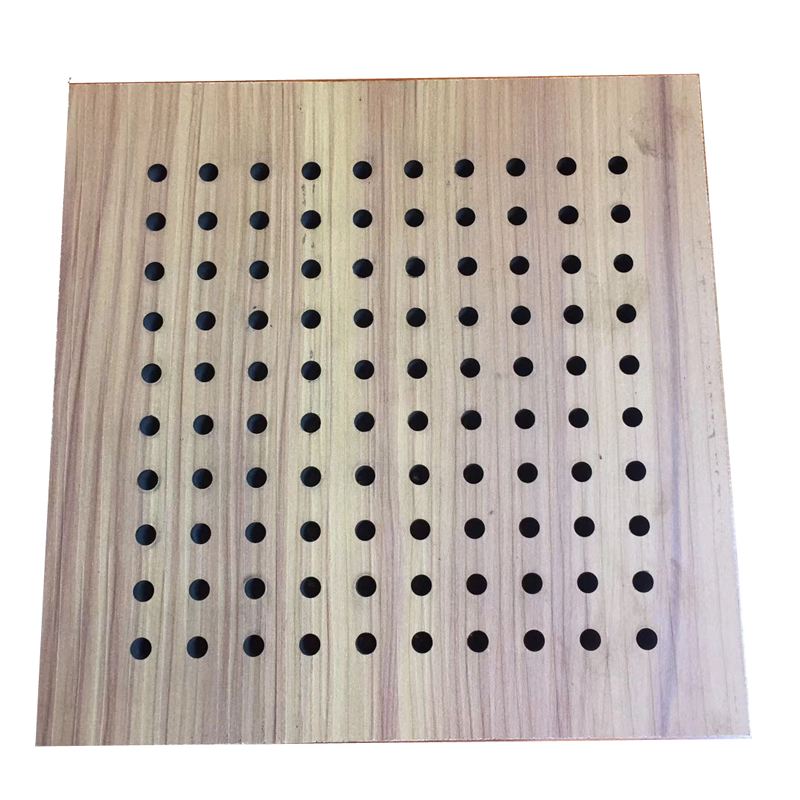

Perforated wood acoustic wall panel is a kind of slit resonance absorption material which is made from high density panel with grooves on the surface and perforated holes at the back side.
It has strong selection on the sound spectrum and particular great performance on the middle and low frequency.
It has better sound absorption effect on medium and high frequency if there is sound absorption cotton filled at the back side cavity.
The design can be custom made.

Office Perforated Wood Acoustic Panels Fireproof Sound Absorption

The wooden perforated panel, which is available in different perforations or patterns. The elements can be installed with a special metal hat profile screwed in the length and the width to the sub construction. Depending on the applicable fire regulations the materials used are rated to either class 2, class 1 or class 0.

Surface treatment:

Powder coating: it is most widely used and environmental friendly way
Roll coating: it can make flower and wooden beautiful pattern come to life with 15 years lifespan.
PVDF: It is the best surface treatment with anti-weather, anti-hit function. Experiment shows that pvt will not fade in 20 years under harsh rain and sun shining.

Office Perforated Wood Acoustic Panels Fireproof Sound Absorption

Technical Details:

Up Size (mm)	Down Size (mm)	Height (mm)	Width of edge (mm)	Thickness (mm)
603×603	585×585	9	9	0.5-0.8
595×595	585×585	9	5	0.5-0.8
595×595	585×585	13	5	0.8-1.0
595×595	575×575	9	10	0.5-0.8
Base materials	Aluminum alloy, the grade of aluminum alloy can be selected according to the actual requirements; Besides, galvanized iron and stainless steel material is also available
Base materials
Surface treatment	Powder coated(ordinary powder, Polyester powder), Paint coated, Film coated


Type of Surface	Plain plate or perforated plate is selected according to the actual requirements
Type of Surface

Perforated pattern:

Perforation is a kind of processing technology for metal ceiling. ceiling design beautiful patterns according to the arrangement of perforated holes with powerful sound absorbing and isolating effect. We have over 40 kinds of fixed perforated types, and could be customized according to client's requirements on patterns, sound absorbing to meet the actual situation . Office Perforated Wood Acoustic Panels Fireproof Sound Absorption

Advantage:

1.No Formaldehyde: wood perforated veneer/melamine friendly acoustic panel is really green product. All the raw materials are using the pure natural matter. And there's no any additive during the pressing process, so it is totally eradicated which do harm to human health.
2.Light and safe: wood perforated veneer/melamine friendly acoustic panel weight is a little heavy. It could reduce the carrying capacity of the ceiling and wall,and reduce the total cost reasonable. Make it safer and economize manpower.

Our service:

1) Free sample will be provided in 5 days.
2) Any inquiry will be replied within 5 hours.
3) OEM and ODM are welcomed.
4) Strict inspection process.
5) Supply certification of SGS and ISO.

Product Tags:

perforated wood wall panels

music studio acoustic panels

Office Perforated Wood Acoustic Panels Fireproof Sound Absorption Images
